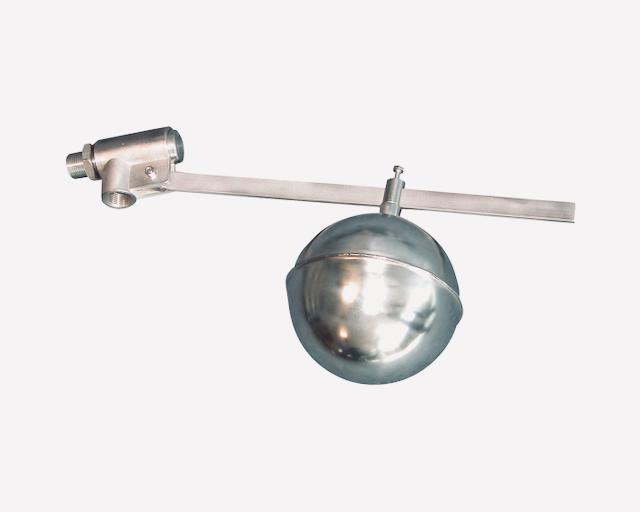

SNFV220180_Stainless steel floating ball valve, 3/4" (female thread) with stainless steel float - 180mm, 6 Bar, AISI304

SNFV220180_Stainless steel floating ball valve, 3/4" (female thread) with stainless steel float - 180mm, 6 Bar, AISI304

https://www.verbasco.lv/web/image/product.template/7584/image_1920?unique=bc39825

Size: DN3/4"

Connection: Male BSP

 Min Temperature: -5°C

Max Temperature: +90°C

Max Pressure: 6 bars

Specifications: Settable compensator

                             Horizontal position

                             Stainless steel valve

!! Do not cut the compensator !!


0,00 € 0.0 EUR 0,00 € PVN iekļauts

1,00 € PVN iekļauts

Šāda kombinācija nepastāv.

PIEPRASI

Materials:

1. Body - AISI304

2. Nut - AISI304

3. Screw - AISI304

4. Gasket - FKM

5. O-ring - EPDM

6. Needle - AISI304

7. Screw - AISI304

8. Nut - AISI304

9. Compensator - AISI304

10. Float connection part - AISI304

11. Screw - AISI304

12. Ball - AISI316
